Wayfarer M7 Mid-Drive Step-Through

£2,599.00

Battery
Add Front Rack
Set-up

Step-Through Mid-Drive (M7): City, Adventure

The Wisper Wayfarer M7 is a crossbar-less version of the M9, with a stiff step-through frame. The frame is perfect for the rider who wants excellent control and comfort. In City spec, it is a comfortable commuter or day-to-day workhorse. However, underneath the city exterior beats the heart of a true thoroughbred. The Wayfarer super hi-torque motor develops 100Nm. This gives the rider excellent control over their bike, making it perfect for commuting or racing. With this hidden power, the Wisper Wayfarer M7 is a true thoroughbred that can take on any challenge.



Specifications

Motor
Wisper Super Hi Torque (100Nm) Mid Drive 43.2V 250W Nominal

Lithium Battery
In frame, secure removable. Chargeable in or out of frame
On/off button with LED charge status light.
Standard 450Wh
Long range 700Wh

Assisted range
Total load, terrain, road surface, tyre pressures, speed, power setting, wind conditions, and motor power all have a huge bearing on an eBike’s bikes range. With this in mind, you may expect to achieve the following AVERAGE ranges. Due to the number of outside factors affecting all electric bikes, our published ranges are estimates only, based on our experience and are not guaranteed. Due to the very high torque available from the Wayfarer Mid Drive if the bike is continuously used in “Turbo Mode” ranges will reduce considerably.
450Wh battery 20 – 40 miles (30 – 60km)
700Wh battery 30 – 60 miles (50 – 100km)

Controls
Wisper Back lit LCD display with remote controls
Thumb throttle to 4mph (6km/h) walk along
Thumb throttle to 15.5mph (25km/h) assist boost

Bicycle weight
450Wh: 27kg
700Wh: 29kg

Frame
Hand welded, 6061 Alloy T4 and T6 tempered

Frame size
17.5” 44.5cm

Frame Colour
Iridium Silver 6 coats

Forks
Suntour XCM 32 100mm travel, through axle

Bars
635mm swept back anodised black

Sizing and Dimensions
 step through electric bike sizing and dimentions



step-through electric bike sizing and dimentions

Stem
Magix black anodised 110mm adjustable

Seat post
31.6mm 350mm with 100mm safety line


Saddle
Wisper Comfort, eBike with seat handle

Kick stand
Black anodised alloy

Gears
Shimano Alivio 9 speed with Rapid Fire shifter

Chain
KMC X9 rust resist 9 speed

Chain drive
44t Rear

Freewheel
11 to 36

Brakes
Wisper Apex Hydraulic disc brakes, 2.5 finger F180mm R160mm

Wheels
Alloy black anodised double wall 27.5” x 1.24″ (31.4mm)

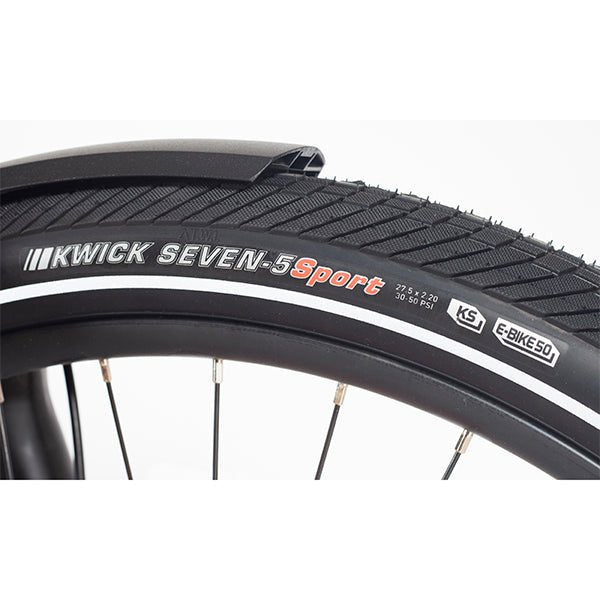

Tyres
Kenda 27.5” 2.2 high puncture resistance with reflector

Adventure Bike Tyre Upgrade (optional extra)
Schwalbe Smart Sam Perf, DD, RaceGuard, Folding 27.5” x 2.25” First class all-rounder with extra safe Double Defence puncture protection 3mm GreenGuard layer, SnakeSkin sidewall. ECE-R75 approved for great riding fun on your E-Adventure Bike. Wayfarer rims can take tyres of up to 2.25″ wide without fouling forks or frame. Tyres of more than 2.25″ can only be used without mudguards.

Mudguards
Black Anodised Aluminium 2.6″

Lighting
Front: Spaningo XE 6V powered from bike battery
Rear: Spaningo XE 6V powered from bike battery

Rear Rack
Wisper integrated custom, 17kg limit

Front Rack (optional extra)
Wisper integrated custom, 10kg limit

Max Weight Load Inc. Luggage
21st 135kg

Delivery & Set-up
